- Processing customization:
- Yes
- Model:
- KER-GSL-2KW
- Heat transfer area:
- customizable ㎡
- Rotational speed:
- 1-5 r/min
- Power:
- 2 kw
- Floor space:
- customizable ㎡
- Weight:
- 100 kg

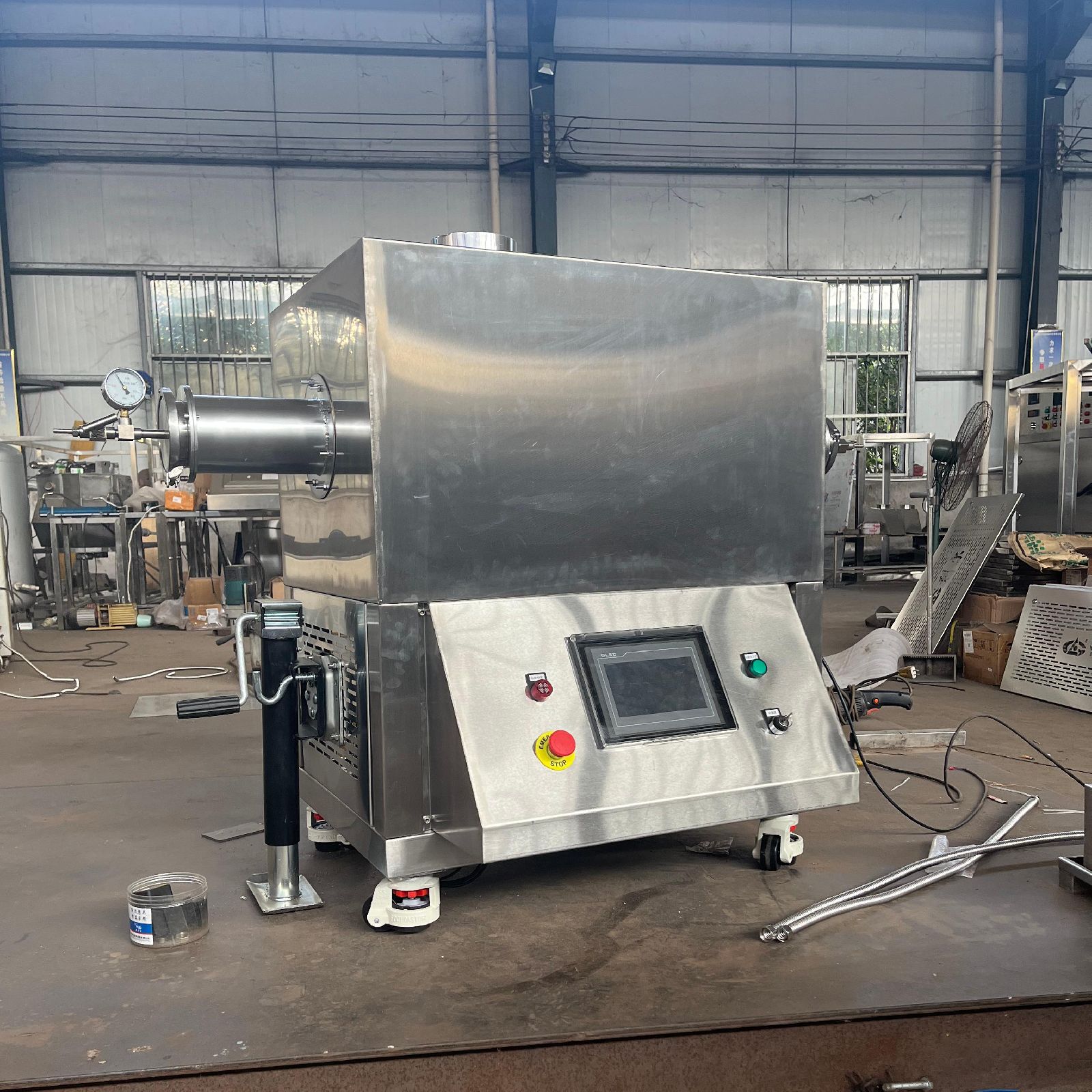

product model
KER-GS-4M
power supply
380v±10v 50Hz±1Hz
microwave system
power
6000w
frequency
2450±50HZ
temperature system
temperature measurement mode
High precision thermocouple
operating temperature
100-1200℃
ultimate temperature
1200℃
temperature measurement accuracy
±1℃
control mode
Temperature mechanical control (optional PLC, temperature curve, temperature data export, touch screen operation, can pass atmosphere) Power adjustable
heating rate
Temperature rise according to material absorption ratio: 50℃/min
protection system
microwave leakage
Microwave leakage level 5mW/m ²(GB)
alarm of measurement and control tube
over temperature alarm
furnace door protection
warning slogans
Pipe diameter size
Φ100(customizable)
Overall size (W * H * D)
1000*700*800mm
heating zone distance
400mm
quartz tube
10 piles
flange interface
1 set
PLC touch control
Special ticket quotation: 67,800
Application: Laboratory microwave equipment is suitable for all kinds of colleges and universities laboratories, industrial and mining enterprises, quality inspection, drug supervision laboratory, for air atmosphere or inert atmosphere conditions of metal, ceramic sintering, calcination and small price of heating, roasting, drying, heat treatment.
Main application areas: Powder metallurgy, hard magnetic, soft magnetic, metal magnetic, structural ceramics, varistor, thermistor, piezoelectric ceramics, microwave dielectric ceramics, honeycomb ceramics, electrical ceramics, household ceramics, carbon materials, catalysts, high-purity alumina, magnesium oxide, zinc oxide, zirconium oxide, aluminum hydroxide, zirconium hydroxide, non-metallic elements and other fine products sintering experiments, various powder materials such as LED, tricolor, long afterglow rare earth luminescent materials, battery materials (lithium cobaltate, lithium manganese oxide, three elements, lithium ferrous phosphate, nickel hydroxide, etc.), various ceramic pigments, glazes, inorganic pigments, barium titanate, barium strontium titanate, barium zirconate titanate, metal carbides, iron alloy nitrides, diamond oxidation, graphite reduction experimental process exploration.
It is a new generation of standardized microwave high temperature experimental workstation with remarkable gao efficiency, energy saving and environmental protection. It is suitable for calcination, baking, sintering, high temperature synthesis, ashing, melting and heat treatment of various solid materials in various air atmospheres. It can also be used for high temperature constant temperature test or test of test samples or products produced.
Key features:
· Special high-performance industrial-grade microwave source is adopted to ensure continuous and stable operation of equipment for a long time.
· It can realize ultra-fast temperature rise, greatly shorten the holding time, and improve the experimental efficiency.
· Microwave output power adjustable, timing, temperature control, and to achieve accurate temperature control curve dynamic monitoring
· Imported high-precision thermocouple temperature measurement, direct measurement of sample temperature, temperature control stability: 1 C
· All kinds of special crucibles and insulation structures are available, which are pollution-free for materials.
· It can process and test various materials with different microwave characteristics, and has strong versatility.
· Corrosion resistant exhaust channels are provided to quickly exhaust gases generated during heating.
· Touch screen display and cao
· Can set and store multiple temperature control curves, automatic storage of running records, compatible with printers
· Multiple an all-lock protection device, oven door, heating chamber door is not closed or abnormal open does not start microwave function
· Anquan reliable microwave shielding design, multi-channel anti-leakage protection function, to achieve microwave zero leakage, to ensure the health of the experimenter
· Window video shows reaction status in real time
