name

detailed

unit type

KER-GZ-50KW

microwave equipment power

50KW

microwave total power

S70KVA

Equipment size

10000mm*1100mm*1700mm(length * width * height)

output power

>50KW(microwave power section frequency conversion adjustable)

Working process temperature control

60-105℃ adjustable (constant temperature control system)

Magnetrons and power supplies

This equipment adopts imported Samsung water cooled magnetron, Megmeet frequency conversion closed water cooled power supply 48 sets each.

energy dissipation

70 kWh *0.7 yuan =49 yuan/hour

microwave feed site

up-down feed

input power

Three phase, 380V (10% variation range),50Hz

microwave frequency

2450MHz±50Hz

Sterilization chamber material

Stainless steel processing

control mode

Automatic PLC 10 inch touch screen control and liquid imaging display

Conveyor belt specifications

Teflon tape/size width 900mm/1mm material thickness 20mm-22m

work environment

0~40℃, relative humidity 80%

Number of microwave cabinets

Dry box 6 sections

apply

drying

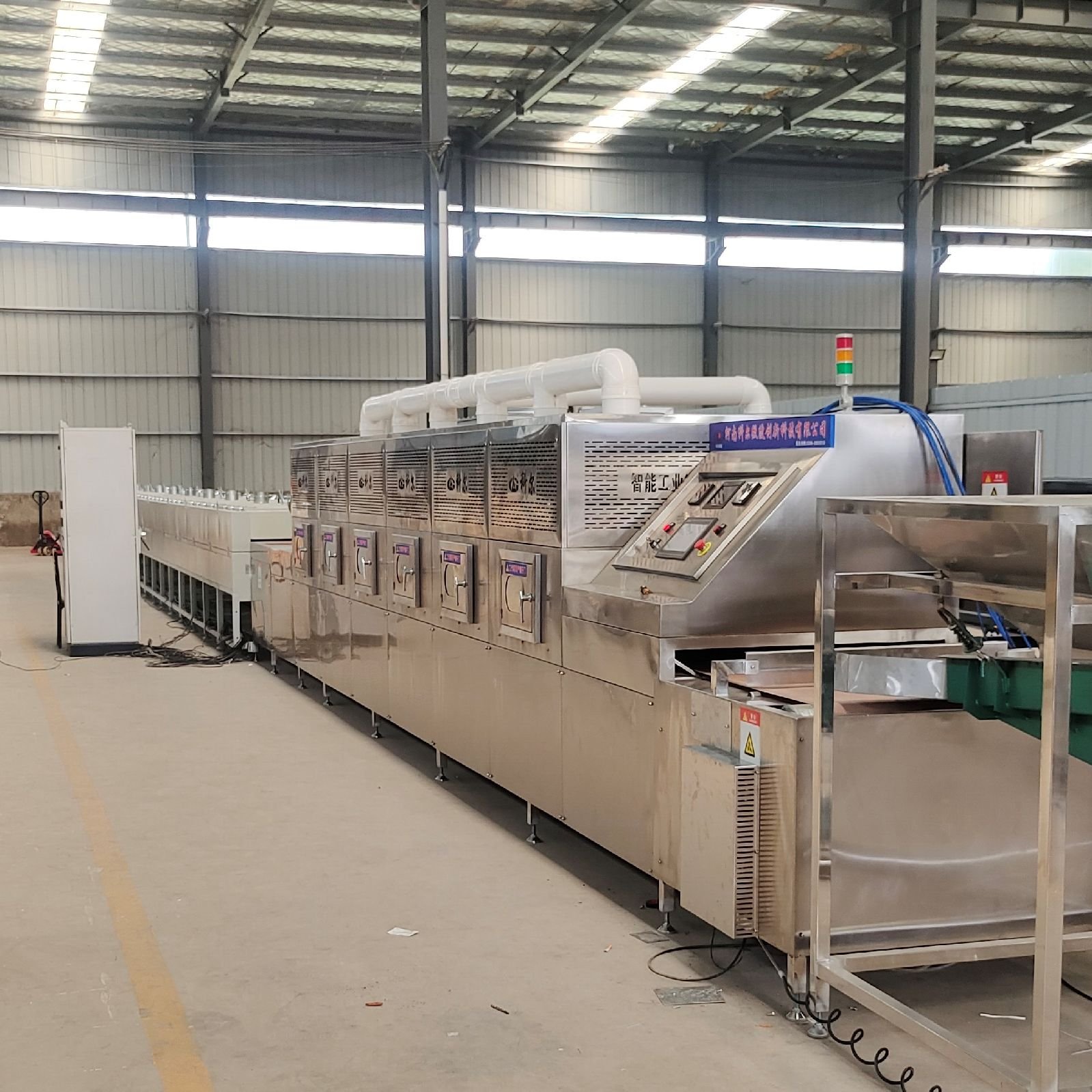

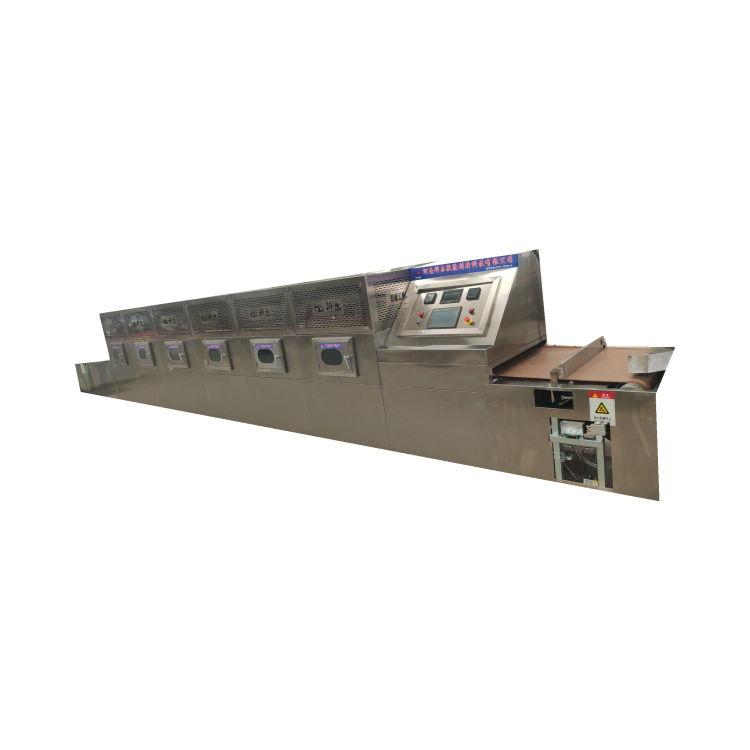

Microwave new energy material drying equipment is customized equipment, the equipment size is customized according to the user's volume and quantity of materials to be heated, and the power is customized according to the user's heating speed requirements, ranging from 15 kW to 200 kW. With temperature monitoring control, transmission speed control, lighting, power regulation and other functions, PLC automatic control is optional, if you have relevant application needs, you can give me the requirements, we will give you the implementation plan.

Microwave drying characteristics:

1, short time, fast conventional thermal drying is through heat conduction, convection or radiation and other ways to transfer heat from the surface of the object to the interior. It often takes a long time for the interior of the object to reach the desired dryness. The medium is composed of polar molecules and nonpolar molecules. Under the action of electromagnetic field, these polar molecules change from the original random distribution state to the polar alignment according to the electric field. Under the action of high-frequency electromagnetic fields, these orientations change continuously according to alternating electromagnetic frequencies, which causes the molecules to move and rub against each other to generate heat. At this time, the field energy of the alternating electric field is converted into thermal energy in the medium, so that the temperature of the medium is continuously increased, so microwave heating is the loss of electric field energy of the dielectric material itself and heating. Therefore, the microwave heating treatment time is greatly shortened, and under a certain power density intensity, it generally takes tens of seconds or minutes to achieve satisfactory results.

2, low temperature drying to maintain the dual role of microwave thermal effect of rapid heating and non-thermal effect, compared to conventional thermal drying, can be at a relatively low temperature and a shorter time to obtain the desired drying effect.

Microwave oven can be designed and manufactured according to the actual products and output of users. Our company has industrial microwave ovens and other microwave equipment test prototypes. We provide free on-site production of cao and provide one-stop technical services in combination with user products. Welcome new and old friends to visit and negotiate. The size of the equipment can be designed and manufactured according to the output of the user's product.
